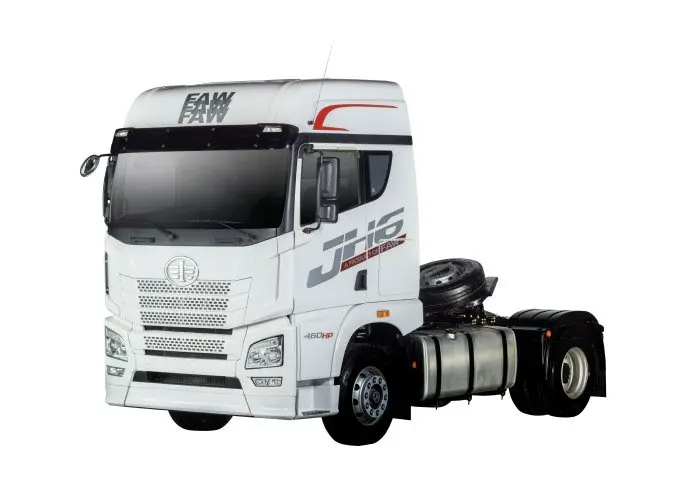

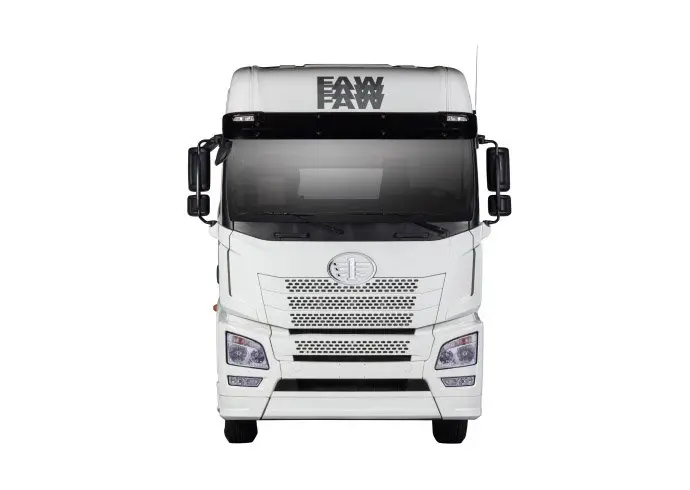

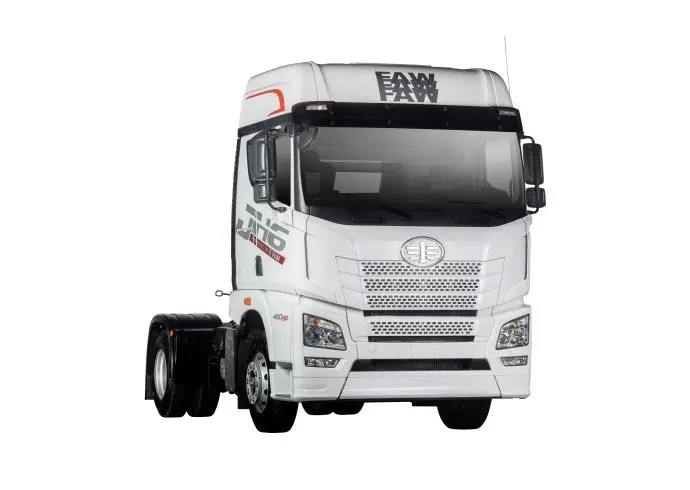

FAW TRUCKS JH6 Series Model 4x2
Well-known for its fuel efficiency, light weight and low maintenance cost, forging a high cost performance truck with high efficiency, reliability, safety and comfort ability.
Contact us

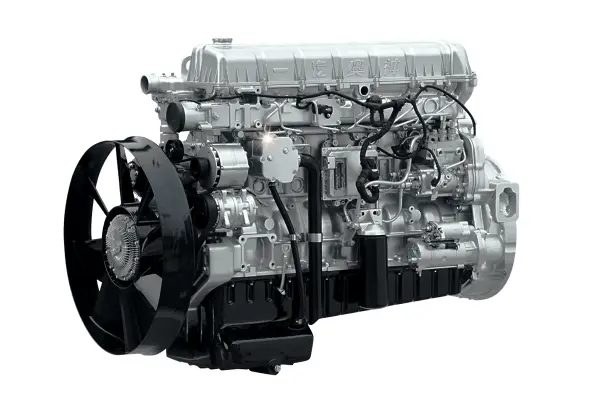

Engine - CA6DM2
FAW trucks are powered by the robust CA6DM2 engine — a 6-cylinder, 11-liter diesel powerhouse built for long-haul, heavy-duty operations. Delivering up to 460 horsepower and 2,100 Nm of torque, this engine ensures strong pulling capacity and smooth acceleration, even under the toughest road conditions.
Equipped with an advanced Common Rail fuel injection system, the CA6DM2 offers excellent fuel efficiency and responsive performance. Its efficient water-cooling system maintains optimal operating temperature, making it ideal for the harsh climate of the Gulf region. Built with durability and ease of maintenance in mind, this engine is the perfect choice for transport companies that value reliability and long-term performance.

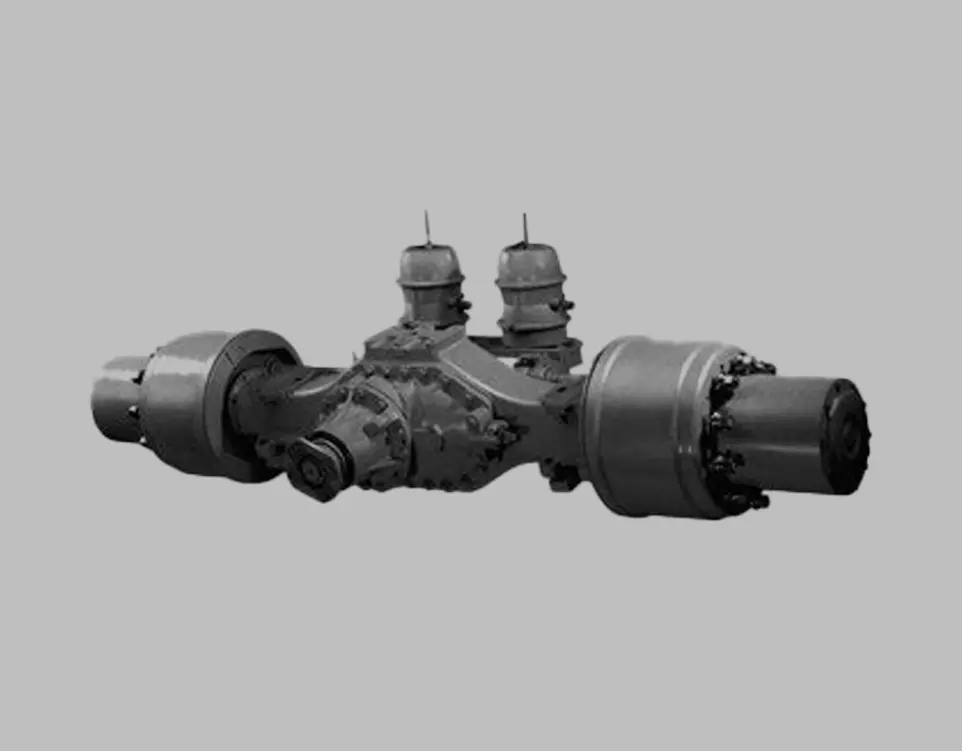

498 Axle
With the strong bearing capacity (13 tons), strong driving capacity (output torque: 50000N. m), wide speed ratio (speed ratio range: 2.688-4.875), light weight and other characteristics, it is a highly competitive product in the standard load transportation market.

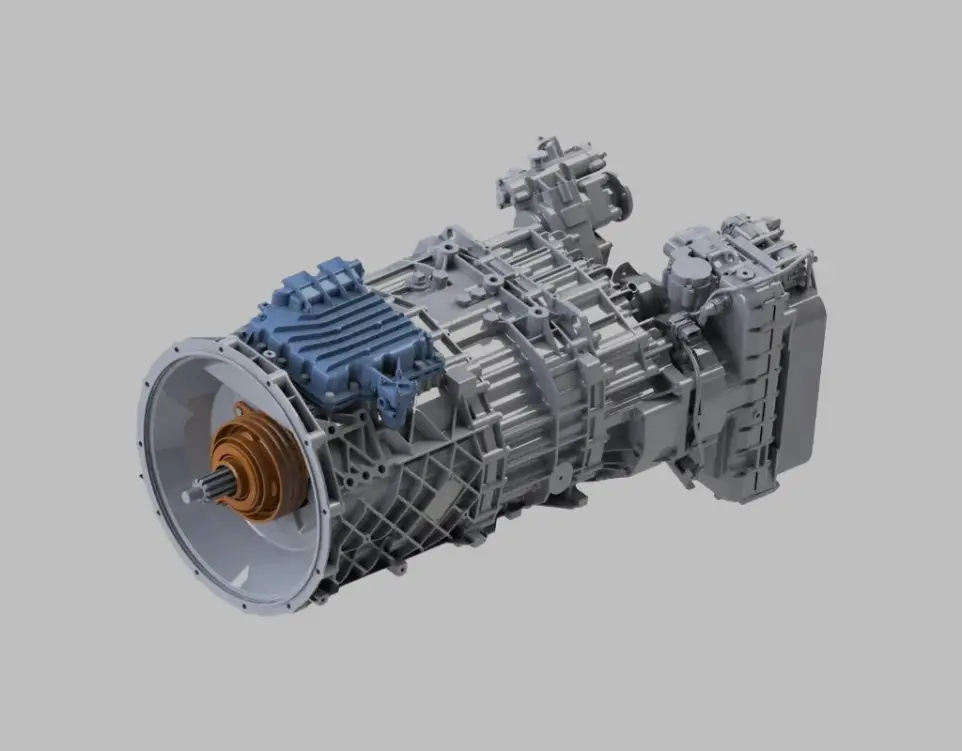

AMT
During the driving process of the vehicle matched with the AMT transmission, the computer will give the optimal dynamic or economic target gear at the real time according to the different loads, road conditions and vehicle operating conditions. The mechanical transmission efficiency is high, which is conducive to giving full play to the power of the vehicle, improving the fuel economy and reducing emission pollution.
Test Drive Service
We offer you an exclusive opportunity to experience our truck for 5 days – with no obligation
Specifications
- Model: CA4181P26K2E5A80 4X2 420HP Tractor(LHD)
- Recommend Areas: GCW45000kg
|
GVW (kg) |
45T |
|
Curb Weight of Chassis (kg) |
6900 |
|
Max. drawing Capacity (kg) |
38100 |
|
Total weight with trailer (kg) |
45000 |
|
Max. Axle Load Distribution(Front/Kg) |
7T |
|
Max. Axle Load Distribution(Rear/Kg) |
13T |
|

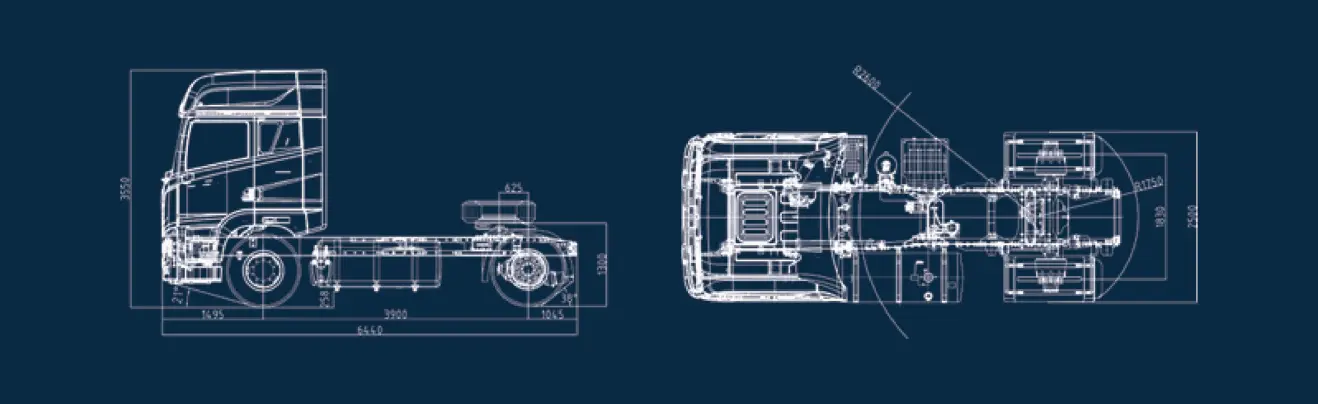

Length (mm) |
6450 |
|
Width (mm) |
2570 |
|
Height (mm) |
3850 |
|
Wheel Base (mm) |
3900 |
|
Wheel Track Front /Rear (mm) |
2020/1847 |
|
Overhang Front /Rear (mm) |
1495/1055 |
|
PERFORMANCE |
|
Max.Speed (km/h) |
120 |
|
Max.Grade Ability (%) |
25 |
|
Approach Angle (°) |
17 |
|
Departure Angle (“) |
40 |
|
Parking Brake Grade Angle (%) |
12 |
|
Min.Ground Clearance (mm) |
222 |
|
Min.Steering Radius (m) |
≤15 |
|
Fuel Consumption (L/100km) |
30 |
|
Fuel Tank Capacity (L) |
725 |
|

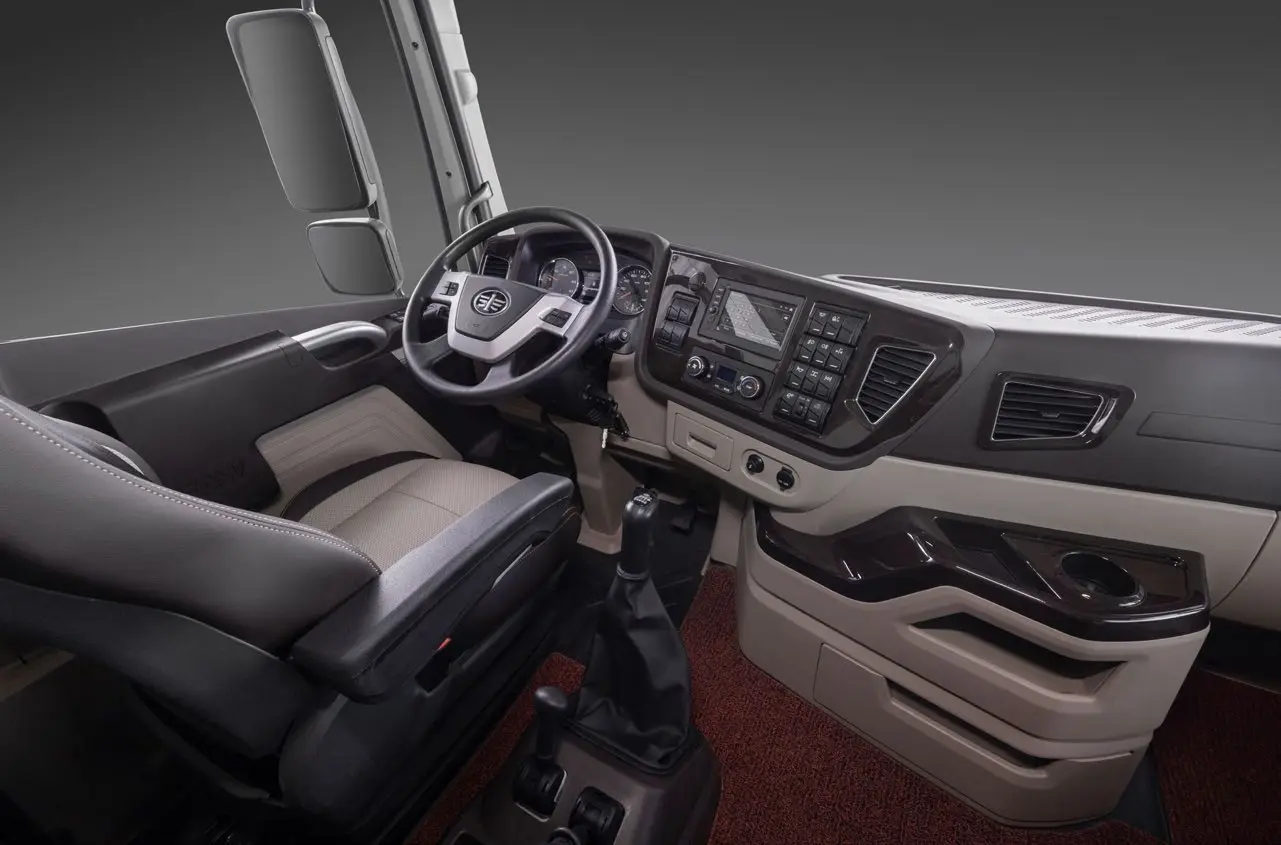

CAB |
|
|
Category Seat |
JH6 Raised floor with a fairing, High roof 2 |
|
FRAME |
|
|
Structures Main Rail Section (mm) Suspension Type |
Side rails/roll-in/riveted 300*80*8 Air suspension |
|
BODY |
|
|
Fifth Wheel Type (inch) |
2.0 inch |
|
Turning Radius Front (mm) |
2200 |
|
Turning Radius Rear (mm) |
1850 |
|
Fifth Wheel Height Empty Load (mm) |
1350 |
|
Fifth Wheel Height Full Load (mm) |
1300 |
|
ENGINE |
|
Model FAW CA6DM2-42E52 Type 6 in-line/Water-cooling/Four stroke/ Intercooling/Direct injection Displacement (L) 11.05 Max Output Power (Kw/rpm) 312/1900 Max Torque (Nm / (r/min)) 2100/1100-1400 Horsepower (Ps) 420 Emission Level Euro 5 |
|
TRANSMISSION |
|
Model FAST F12JZ22A Type Overdrive/AMT Forward Gear Ratio i1=12.26, i2=9.56, i3=7.36, i4=5.73, i5=4.52, i6=3.52, i7=2.71, i8=2.11, i9=1.63,i10=1.27, i11=1.00, i12=0.78; Reverse Gear Ratio iRL=11.28,iRH=8.79; |
|
CLUTCH |
|
Driven Plate Dia. Ф430 Type Pull type diaphragm clutch |
|
STEERING |
|
Model TRW Type 15Mpa Ratio 23.30 |
|
REAR AXLE |
|
Model 498 model Type Single reduction/Rated load 13000kg Ratio 4.1 |
|
BRAKE |
|
Driving Brake Dual circuit air braking system Parking Brake Manual valve spring cylinder storage brake Auxiliary Brake Engine brake |
|
WHEEL |
|
Tire Model Front:385/65R22.5,Rear:315/80R22.5 Tyre Rim 9.00×22.5 Tire Type Radial/Tubeless |
|
MISCELLANEOUS |
|
WABCO ABS |
